Setting up and configuring facets

Faceted navigation is a core capability of Elevate, designed to improve product discovery and streamline the shopping experience. It allows shoppers to filter products by attributes such as price, brand, color, size, and more — helping them quickly narrow their choices and find relevant items faster. Facets act as filters that reduce friction in the customer journey and create a more intuitive, user-friendly interface. What distinguishes Elevate is the extensive customization it offers. Retailers can tailor filters to align with the complexity and structure of their catalogs, resulting in faster, more relevant experiences — and ultimately, higher conversion rates and customer satisfaction.

Prerequisites

Facets are derived from the attributes defined in your product feed. This includes both standard and custom fields. Ensure your feed includes all relevant data you want to expose as facets. Refer to the Admin API and catalog import documentation for detailed steps on importing and formatting your product feed. All facet configurations are edited in the Elevate app. All users can access the Facet Configurator to view existing settings. However, only users with the correct permissions can make edits in the view. To enable editing rights for a user in the application:

Select the user

Go to the Admin tab and select the desired user.

Open the Experience section

In the user profile, navigate to the Experience section.

Enable the permission

Enable the Can edit global facet configuration permission.

Save the changes

Click Save to confirm changes.

Refresh the application

Refresh the application for the updated permission to take effect.

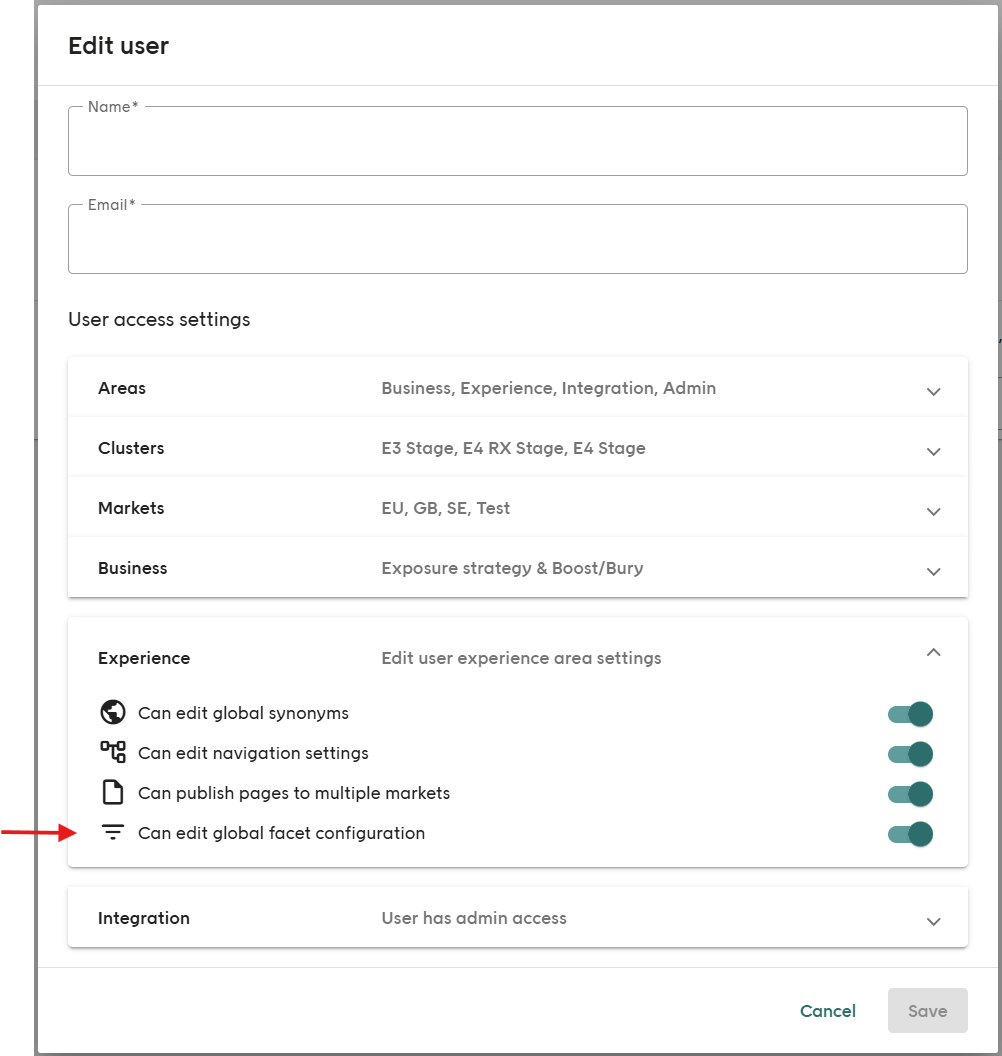

Facet Configurator edit permission setting

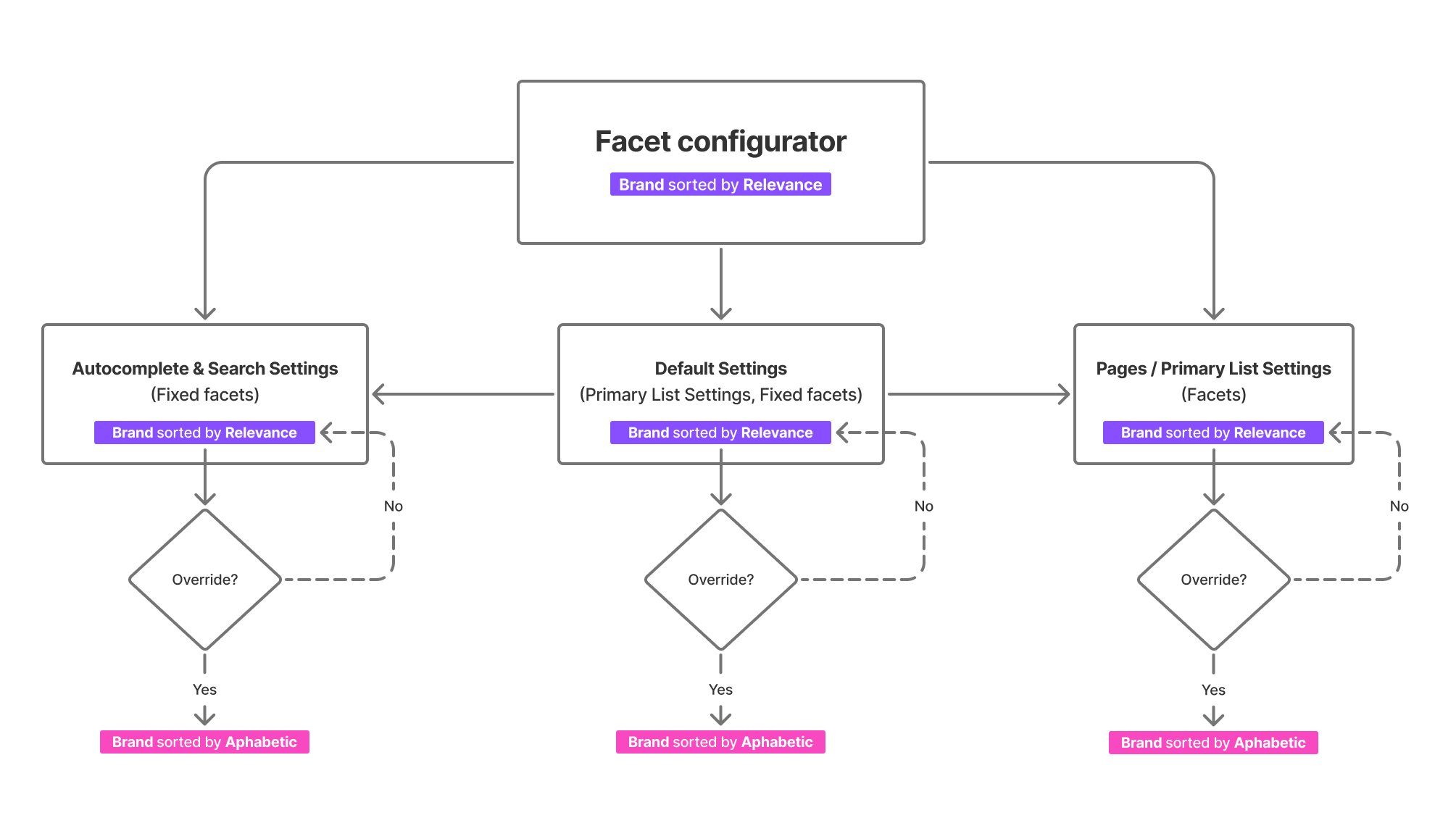

A typical facet configuration in Elevate follows a layered and centralized approach:

Facet Configurator

Defines all available facets across all markets and sets default properties such as display type, sort order, and units.

Default Settings

These are market-specific and apply to all pages with a primary product list and the search results page, forming the base configuration.

Pages

All pages — whether individual pages with primary lists or the search results page — will use the Default Settings by default.

Overrides

Overrides can be separately applied to:

Individual Pages with Primary Lists
Autocomplete & Search Settings

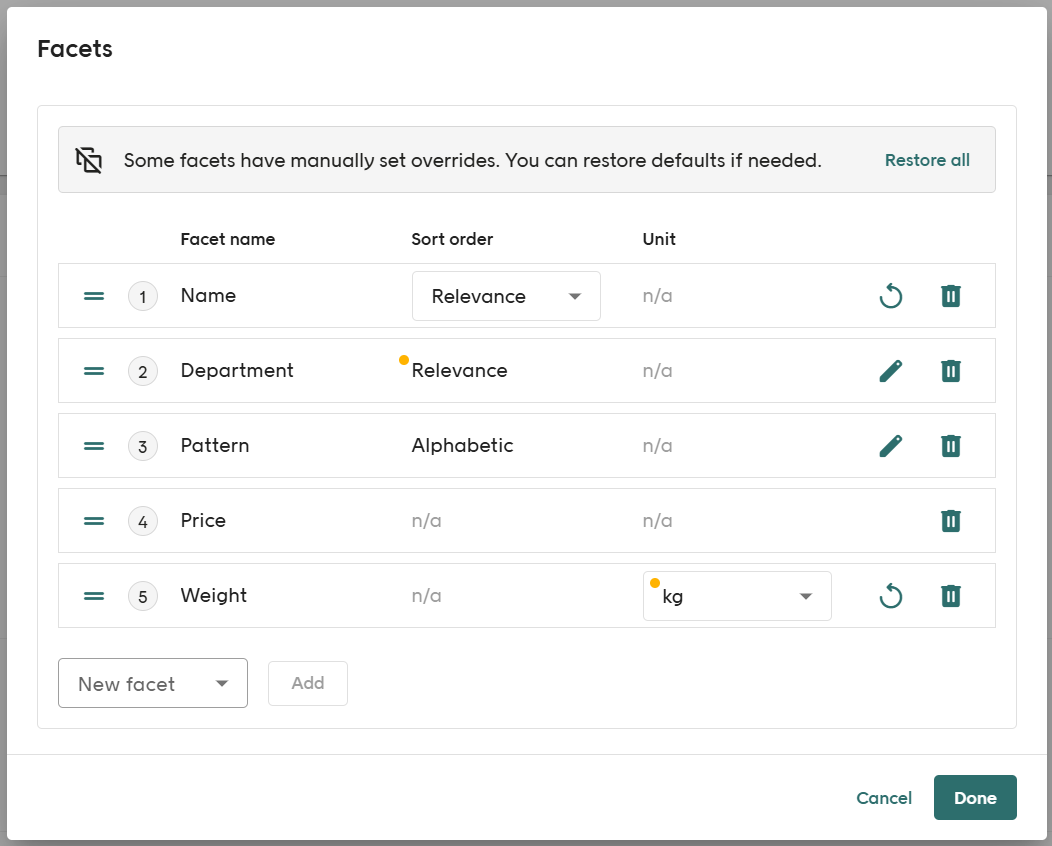

Overrides can also be applied within the Default Settings, but only at the individual facet level — for example, to change the sort order of values for a specific facet.When used, overrides take precedence in their specific context — allowing for flexibility while maintaining overall consistency.

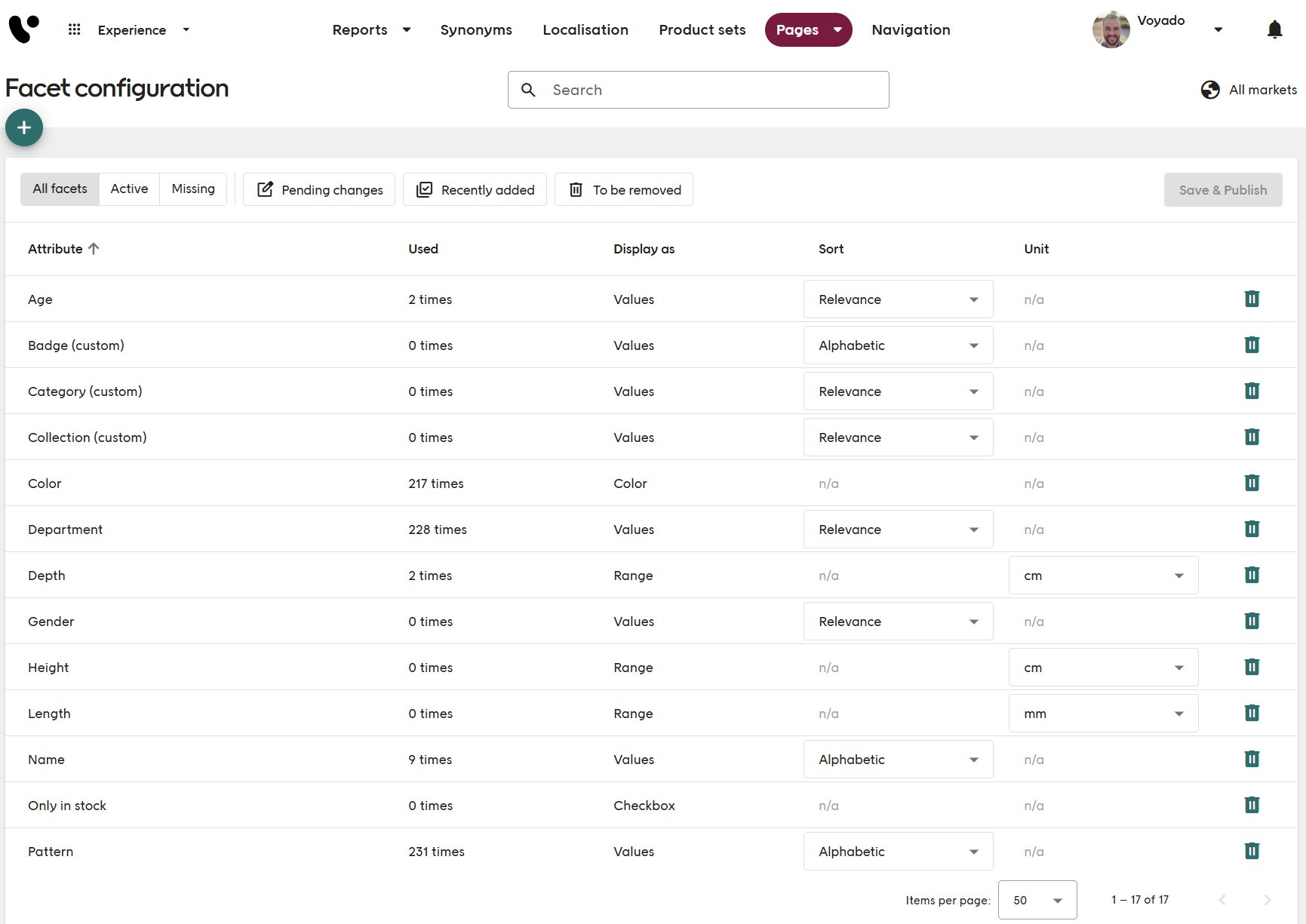

Location: Experience → Pages → Settings → Facet Settings Access: See the Facet Configurator access section above. This is the source of truth for facet definitions across the application.

You can override settings for specific product areas as needed, without impacting the facets configured in the Facet Configurator.

Behavior

Save & Publish applies changes to all markets.
Modifications (for example, display type, sort, unit) update all non-overridden instances.
Removing a facet deletes it from the entire application. This action will impact:
- Default Settings
- Individual Pages with Primary Lists
- Autocomplete & Search Settings
Adding a facet makes it available across the entire application.

The Used column shows how many times a facet is currently configured across the system. This includes:

Default settings
Autocomplete & Search Settings
Individual pages with overrides

It helps you understand how widely a facet is used before making changes like editing or deleting it.

Facet availability is determined by the attributes present in your product feed. If a facet is marked as Missing, it means the corresponding attribute was previously configured but is no longer available in the current feed. Should the attribute reappear, the facet will automatically return to an Active state within the Facet Configurator. Missing facets can be deleted if they are no longer needed. Make sure to add and configure only relevant attributes that merchandisers are likely to use as facets when working with Pages, Slices, and other features. For full configuration options, refer to the catalog import schema documentation.

Type	Display As	Sort	Unit	Attributes
Boolean	Checkbox	n/a	n/a	in stock
Measurement	Range	n/a	mm, cm, dm, m, in, ft, yd, ml, cl, dl, l, oz, gal, mg, g, hg, kg, lb	length, width, height, depth, volume, weight, customLengths
Value	Values	Alphabetic, Relevance	n/a	brand, department, pattern, name, series, gender, age, customLabels
Range	Range	n/a	n/a	price, items, rating, customNumbers
Color	Color	n/a	n/a	color (for example, red, blue, green)
Size	Size	Alphabetic	n/a	size (for example, S, M, L, 36, 38, 40) with automatic size cleaning

Facet usage contexts

Default Settings

Location: Experience → Pages → Settings → Default Settings → Primary product list → Facets Defines default facets used across all primary list pages and the search result page — unless specifically overridden.

Autocomplete & Search

Location: Experience → Pages → Settings → Autocomplete & Search → Search Result Page → Override Facets Overrides default facets for search results only. Use to provide more relevant filters based on user intent.

Per page primary list

Location: Experience → Pages → Category & Landing pages → [Page] → Primary List Settings → Override Facets Provides fine-grained control by overriding facets for individual pages. Facets will only appear on the frontend after proper configuration:

Add the facet in the Facet Configurator
Include it in either Default Settings or page-specific overrides
Confirm inclusion in the Storefront API response
Render facets using frontend code based on API data

Integration with Storefront API

The Storefront API holds facet data and supports filtering through query parameters. Shopper-selected facets must be passed in all subsequent requests. The query parameter formats are:

Boolean, Value, Color & Size Facets

f.[facet_id]=value1|value2

Range/Measurement Facets

You can set either a minimum value, a maximum value, or both.

f.[facet_id].min=10
f.[facet_id].max=100

Preview & testing

Use the preview feature in Elevate to validate facet functionality with real product data before launching live. This example demonstrates how to set up product facets in Elevate for an electronics store — from importing product data to configuring and integrating facets.

Step 1: create a product feed

Import a feed that includes all relevant attributes for filtering.

Example product feed

{
    "replace": {
        "key": "1001",
        "productGroup": {
            "products": {
                "1001-100": {
                    "markets": [
                        "TEST"
                    ],
                    "defaults": {
                        "url": "/products/1001-100",
                        "title": "ROG Swift PG27AQDM",
                        "brand": "Asus",
                        "customLabels": {
                            "panel_type": "OLED",
                            "adaptive_sync": ["NVIDIA G-SYNC", "AMD FreeSync Premium"],
                            "io_ports": ["DisplayPort 1.4", "HDMI", "USB 3.2 Gen 1 Type-A", "Earphone jack"]
                        },
                        "customLengths": {
                            "screen_size": {
                                "amount": 26.5,
                                "unit": "in"
                            }
                        },
                        "customNumbers": {
                            "refresh_rate_hz": "240"
                        }
                    },
                    "variants": {
                        "1001-100-1": {
                            "defaults": {
                                "stock": 3,
                                "sellingPrice": 820,
                                "listPrice": 820
                            }
                        }
                    }
                }
            }
        }
    }
}

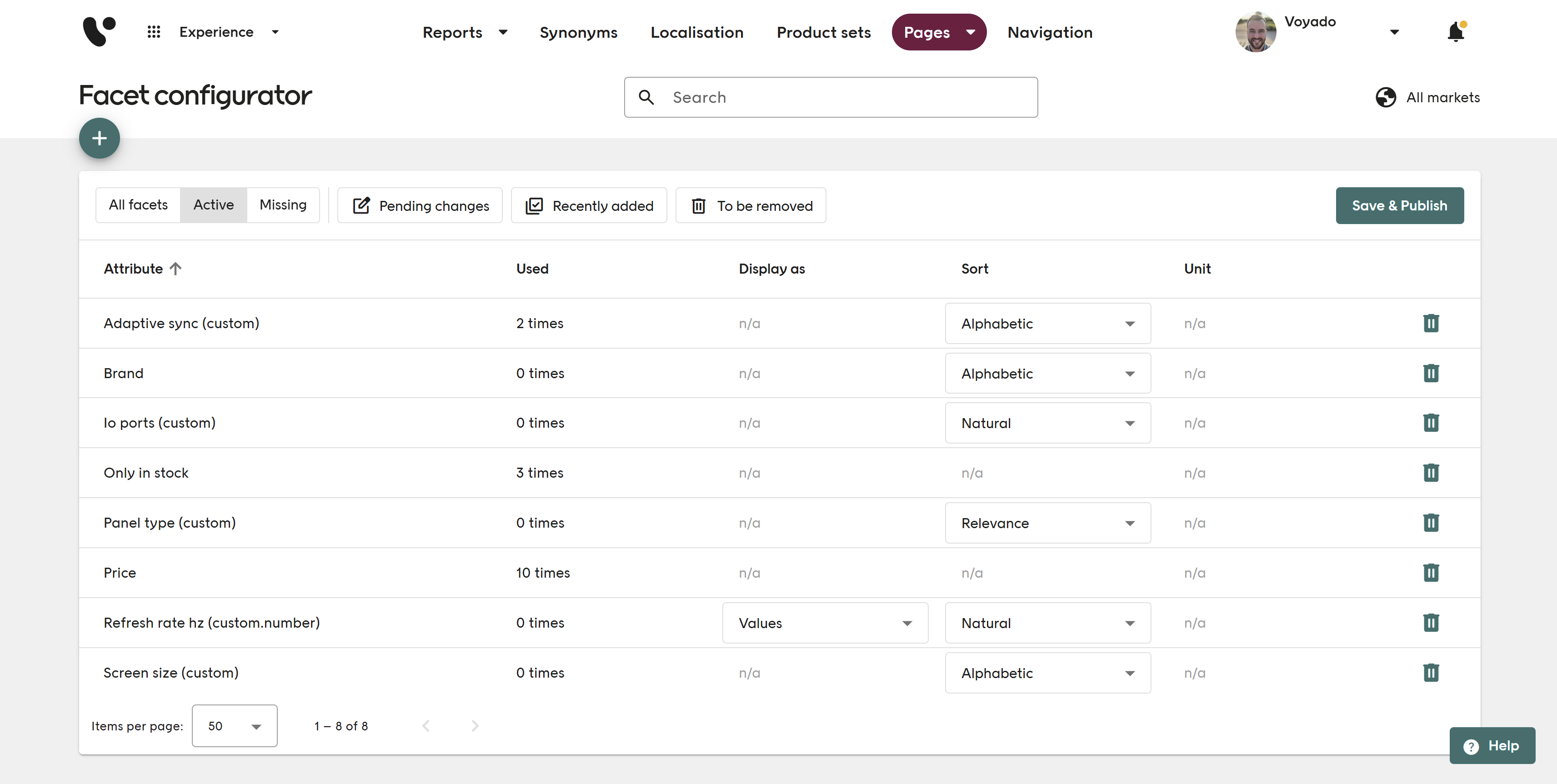

In the Experience app, set up the following attributes as facets:

in_stock — Becomes a checkbox automatically.
price — Auto-configured as a range slider.
refresh_rate_hz — Custom numeric; configure as a range slider.
brand — Use Alphabetic sort.
screen_size, panel_type, adaptive_sync, io_ports — Use Natural or Relevance sort.

Step 3: site integration

Facets are returned by the Storefront API in a consistent format for both landing and search pages.

Example response

{
  "facets": [
    {
      "id": "onlyInStock",
      "label": "In stock",
      "type": "CHECKBOX",
      "count": 5
    },
    {
      "id": "Brand",
      "label": "Brand",
      "type": "TEXT",
      "sort": "ALPHABETIC",
      "values": [
        { "id": "Asus", "count": 3 },
        { "id": "Dell", "count": 1 },
        { "id": "Samsung", "count": 1 }
      ]
    },
    {
      "id": "price",
      "label": "Price",
      "type": "RANGE",
      "min": 600,
      "max": 820
    },
    {
      "id": "custom.refresh_rate_hz",
      "label": "Screen refresh rate (hz)",
      "type": "RANGE",
      "min": 60,
      "max": 240
    }
  ]
}

Include selected facets in query parameters: Value/Boolean

f.brand=Samsung|Dell

Range You can set either a minimum value, a maximum value, or both.

f.price.max=600
f.custom.refresh_rate_hz.min=120

Query example:

curl -X GET \
'https://{cluster-id}.elevate-api.cloud/api/storefront/v3/queries/landing-page?f.brand=Samsung&f.custom.refresh_rate_hz.min=120&f.price.max=600&f.onlyInStock=true'

The API response reflects selected filters:

Example response

{
  "id": "price",
  "min": 600,
  "max": 820,
  "maxSelected": 600
},
{
  "id": "custom.refresh_rate_hz",
  "min": 60,
  "max": 240,
  "minSelected": 120
}
